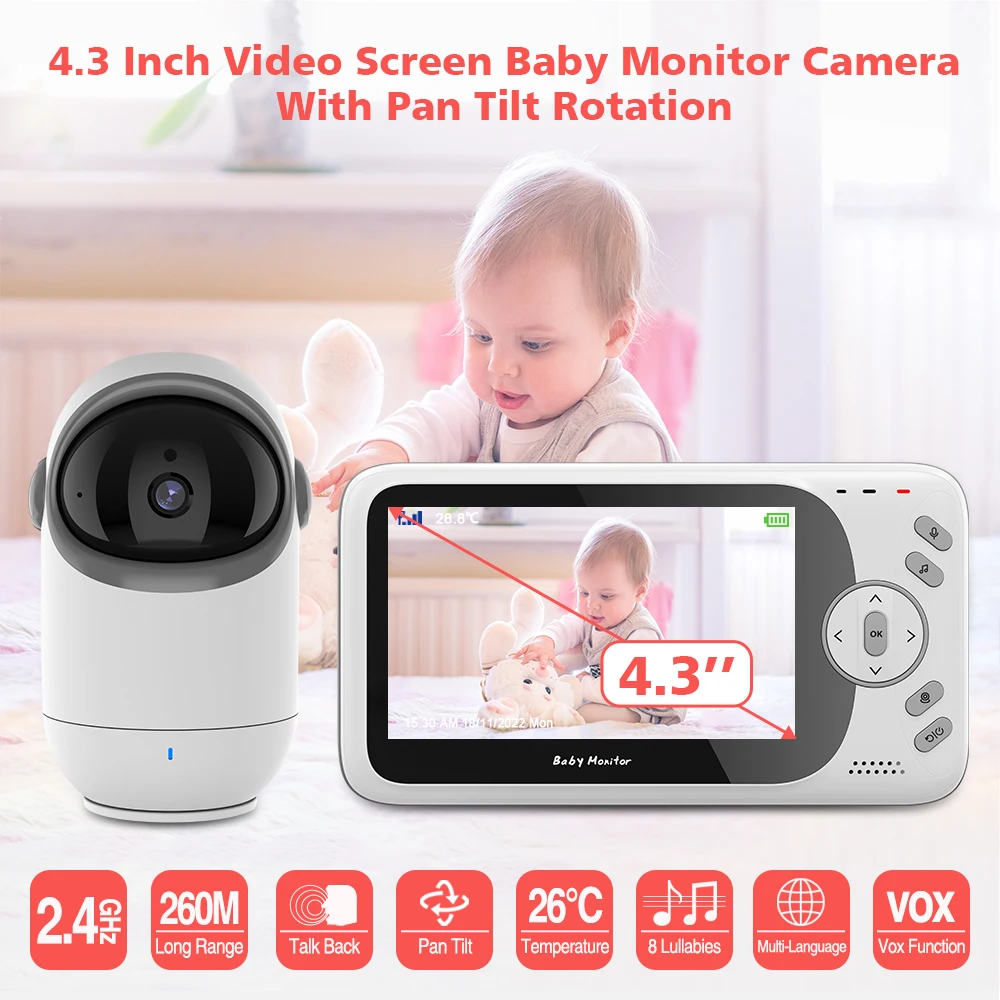

Baby Monitor with Pan Tilt, Zoom and Night Vision

Keep an eye on your little one from anywhere in your home with our versatile Baby Monitor. Either day or night, you can monitor your baby’s activities with comfort.

Pairing Camera

The enclosed Baby Monitor unit has already been preregistered, so that you can immediately put it to use after opening.

Night Vision

The baby unit also has 6 high intensity infrared LEDs for picking up clear images in the dark.

Music Player

Click the Music button to turn on the music and play a lullaby on the baby camera unit. Press the Music button again to turn it off.

Push To Talk Function

Press and hold the Push To Talk button on the monitor unit to talk to your baby through the baby camera unit’s loudspeaker. The symbol will be displayed in the middle of the screen.

Adjusting the Volume

While the monitor unit is on, press volume key to adjust the volume as desired. The display will show the current volume for 3 seconds then disappear.

Vox Function

In VOX mode, the screen will turn off (sleep mode) automatically to save power. Then reactivate automatically when it detects any sound in the baby’s room. Select the VOX option in the menu the choose to turn it on or off Normal mode. VOX sensitivity : Low / Medium / High level .

Pan and Tilt

In the monitoring interface, click the pan and tilt function button, then click up/down/left/right buttons to remotely pan or tilt the camera .

Either clicking the pan and tilt function button again or having no operation for 5 seconds will deactivate the pan and tilt function.

Supported Languages

Russian/English/French/Spanish/Portuguese/Italian/German/Turkey.

Anti-flicker

You are able to adjust the frequency of 50/60 HZ to suit your lighting for anti-flicker.

Temperature unit

The temperature scale can be switched to Celsius or Fahrenheit as desired.

LCD backlight

The brightness of the baby monitor can be adjusted. i.e. the LCD screen light from the monitor unit and it’s LCD backlight active time in menu operation.

Specification

• Frequency: 2.4GHz
• Unobstructed Effective Range: 160ft/50m indoor, 850ft/260m outdoor line of sight
• Modulation Mode: GFSK
• Operating Temperature:  14 to 122° Fahrenheit / -10 to +45° Celsius
• Operating Humidity:  <85%

Monitor

• LCD Size:  4.3 Inch
• Resolution Supported:  480 x 272 pixels
• Consumption Current:  200mAh
• Battery:  Li-polymer 1760mAh
• Power Supply:  5V/1000mAh DC
• Dimensions (W x H x D):  82.5mm x 151.6mm x 19.5mm

Camera

• Image Sensor:  CMOS
• Minimum Illumination:  0 Lux (IR on)
• Night Vision Distance:  15 FT (5m)
• View Angle: pan;  300° | Tilt; 50°
• Power Consumption:  200mA
• Power Supply:  5V/1000mA DC
• Dimensions (W x H x D):  72.5mm x 116mm x 66.2mm

Package Contents:

• 1 x Parent unit (Monitor)
• 1 x Baby unit (Camera)
• 2 x Power Adapters
• 1 x English User’s Guide
